Quartz 4

tctl

2 min read

client gui (teleport-connect) , tctl (teleport server, admin cli)

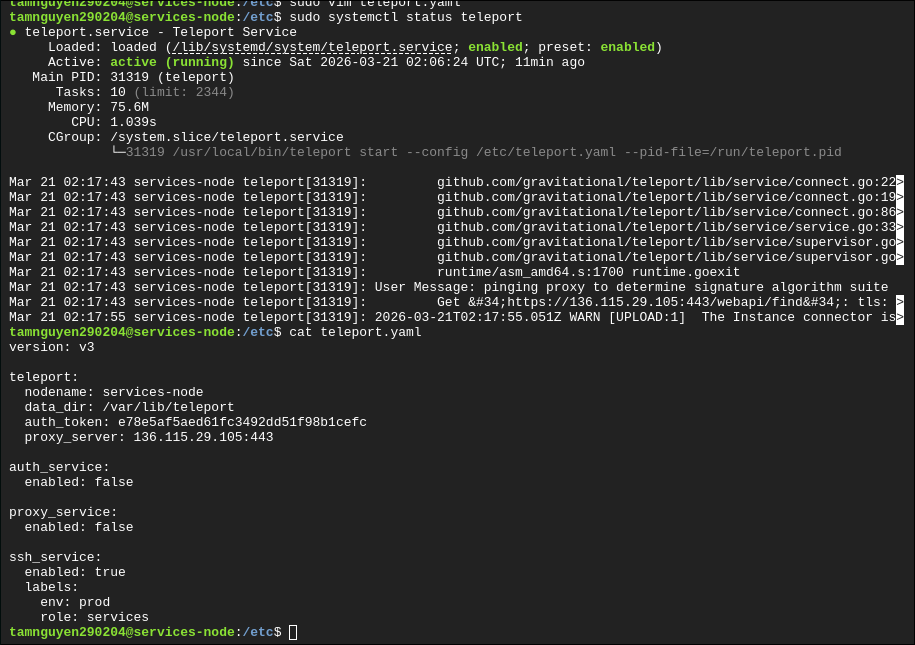

sudo systemctl status teleport
journalctl -u teleport -n 50

sudo tctl users add player1 —roles=editor,access

tsh login —proxy=136.115.29.105 tsh ls

sudo ss -tulpn | grep -E ’:(443|3022|3023|3025|3080)\b’

What you want to see is at least:

  • 443 for web/proxy

  • 3025 for auth

  • usually 3022 for node SSH service

  • 3023 for proxy SSH, depending on listener mode/version

sudo tctl users ls sudo tctl get roles/node-access id tamnguyen

create role file node-access.yaml

cat > ~/node-access.yaml <<'EOF'
kind: role
version: v7
metadata:
  name: node-access
spec:
  allow:
    logins: ["tamnguyen "]
    node_labels:
      "*": "*"
EOF

create role sudo tctl create -f ~/node-access.yaml confirm sudo tctl get roles/node-access

tsh status tsh ssh —login=tamnguyen public-node

update teleport

teleport version
tctl version
tsh version

check running service version sudo journalctl -u teleport | grep version | tail -n 5

check binary path which teleport

https://goteleport.com/download/

cd /tmp
curl -LO https://cdn.teleport.dev/teleport-v15.3.2-linux-amd64-bin.tar.gz
tar -xzf teleport-v15.3.2-linux-amd64-bin.tar.gz
cd teleport

sudo systemctl stop teleport


sudo cp teleport tctl tsh /usr/local/bin/
sudo chmod +x /usr/local/bin/teleport /usr/local/bin/tctl /usr/local/bin/tsh


sudo systemctl start teleport


teleport version
tctl status

data (users, roles, certs, tokens) is safe because it is in /var/lib/teleport

config remains /etc/teleport/teleport.yaml

users still exist but existing login sessions (certs) may expire or break

create join tokne sudo tctl tokens add --type=node --ttl=1h

install teleport agent on nodes:

config /etc/teleport.yaml

tsh login tsh login --auth=local --proxy=localhost:443 --user=tamnguyen290204

ssh agent is not running SSH_AUTH_PSOCK points to a bad socket

tsh stores certs under ~/.tsh/… by default it uses ssh-agent integration you can disable local agent use with the —no-use-local-ssh-agent flag or set

ssh into a node with join token (already joined)

tsh ssh user@node-name

teleport auth + porxy

service cannot compleete tls handshake with the proxy (teleport service is running, config looks mostly correct, but node is failing to join cluster)

if this is prod, we have a domain and valid cert, so dns works should not skip TLS

on service-nodes: sudo nano /etc/hosts add 136.115.29.105 teleport.ccdc.local

edit /etc/teleport.yaml on public-node proxy-service: enabled: true web_listen_addr: 0.0.0.0”443 public_dr: teleport.ccdc.local:443

sudo systemctl restart teleport

on service-node update agent config proxy_server: teleport.ccdc.local:443

sudo systemctl restart teleport

tls validation = encryption + identity verification control plane = teleport uath + proxy server (public-node0 )
